Install Guide: Form Lighting LED Headlights on the 2007-2013 Toyota Tundra & 2008-2017 Toyota Sequoia

Install Guide: Form Lighting LED Headlights on the 2007-2013 Toyota Tundra & 2008-2017 Toyota Sequoia

Upgrading your Toyota Tundra (2007-2013) or Toyota Sequoia (2008-2017) with Form Lighting LED Headlights is a fantastic way to enhance visibility, safety, and the overall look of your vehicle. These headlights are designed for precision fitment and provide superior performance compared to factory halogen units. Follow this detailed installation guide for a seamless process.

Pro Tip: Purchase your Form Lighting LED Headlights from OffRoadUSA to take advantage of great deals and exclusive discounts.

Tools You Will Need

  • Flathead screwdriver

  • Phillips screwdriver

  • Ratchet and socket set (10mm and 12mm sockets)

  • Trim removal tool

  • Torque wrench

  • Microfiber cloth

  • Electrical tape (optional)

Pre-Installation Preparation

  1. Park the Vehicle on a Flat Surface: Ensure your Tundra or Sequoia is in a safe and stable location. Turn off the engine and engage the parking brake.

  2. Disconnect the Battery: To prevent any electrical mishaps, disconnect the negative terminal of the battery.

  3. Unbox and Inspect: Open your Form Lighting LED Headlights package and check for all necessary components. Inspect for any damage.

Step 1: Remove the Front Grille

  1. Open the hood to access the grille mounting points.

  2. Use a trim removal tool or flathead screwdriver to remove the plastic clips securing the grille at the top.

  3. Remove any bolts or screws holding the grille in place with a 10mm socket.

  4. Gently pull the grille forward to release it from the mounting tabs. Set it aside in a safe place.

Step 2: Remove the Factory Headlights

  1. Locate the screws and bolts securing the headlight assembly. These are typically found at the top, bottom, and side of the housing.

  2. Remove the screws and bolts using your ratchet and socket set.

  3. Carefully pull the headlight assembly forward to expose the wiring harness.

  4. Disconnect the wiring harness by pressing the release tabs and gently pulling the connectors apart. Avoid tugging on the wires.

  5. Remove the factory headlight assembly and set it aside.

Step 3: Install the Form Lighting LED Headlights

  1. Align the new Form Lighting LED Headlight assembly with the mounting points on your Tundra or Sequoia.

  2. Connect the wiring harness by plugging the connectors into the appropriate ports on the back of the new headlights. Ensure all connections are secure.

  3. Slide the headlight assembly into place, ensuring it fits snugly into the mounting points.

  4. Reattach the screws and bolts you removed earlier, tightening them securely with a torque wrench.

Step 4: Test the New Headlights

  1. Reconnect the battery and turn on the headlights.

  2. Test all functions, including low beams, high beams, and daytime running lights (DRLs), to ensure proper operation.

  3. If necessary, adjust the aim of the headlights using the adjustment screws. Refer to your vehicle’s owner’s manual for specific aiming instructions.

Step 5: Reinstall the Front Grille

  1. Reposition the grille and align it with the mounting tabs on the front of your vehicle.

  2. Press the grille into place, ensuring all tabs are securely engaged.

  3. Reattach the screws, bolts, and plastic clips to secure the grille.

Post-Installation Checklist

  • Clean the Headlights: Use a microfiber cloth to remove any smudges or fingerprints.

  • Double-Check Connections: Ensure all electrical connections are secure and free of pinched wires.

  • Test Again: Verify that the headlights are functioning as expected before hitting the road.

Why Choose Form Lighting LED Headlights?

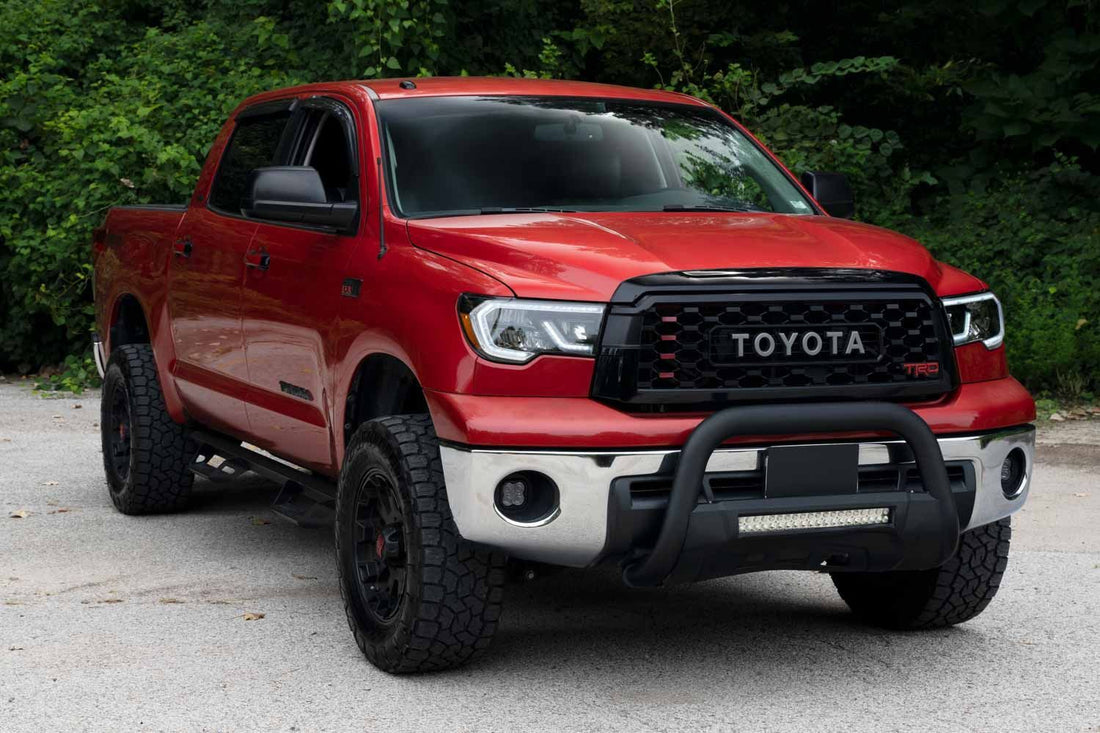

Form Lighting LED Headlights are engineered for exceptional performance and durability. They offer brighter illumination, a modern design, and a direct fit for the 2007-2013 Toyota Tundra and 2008-2017 Toyota Sequoia. With these headlights, you’ll enjoy enhanced safety and style.

Upgrade Today: Purchase your Form Lighting LED Headlights from OffRoadUSA to enjoy exclusive savings and free shipping options.

By following this guide, you’ll have your new headlights installed quickly and correctly. Drive confidently with improved visibility and a sleek, upgraded look!
