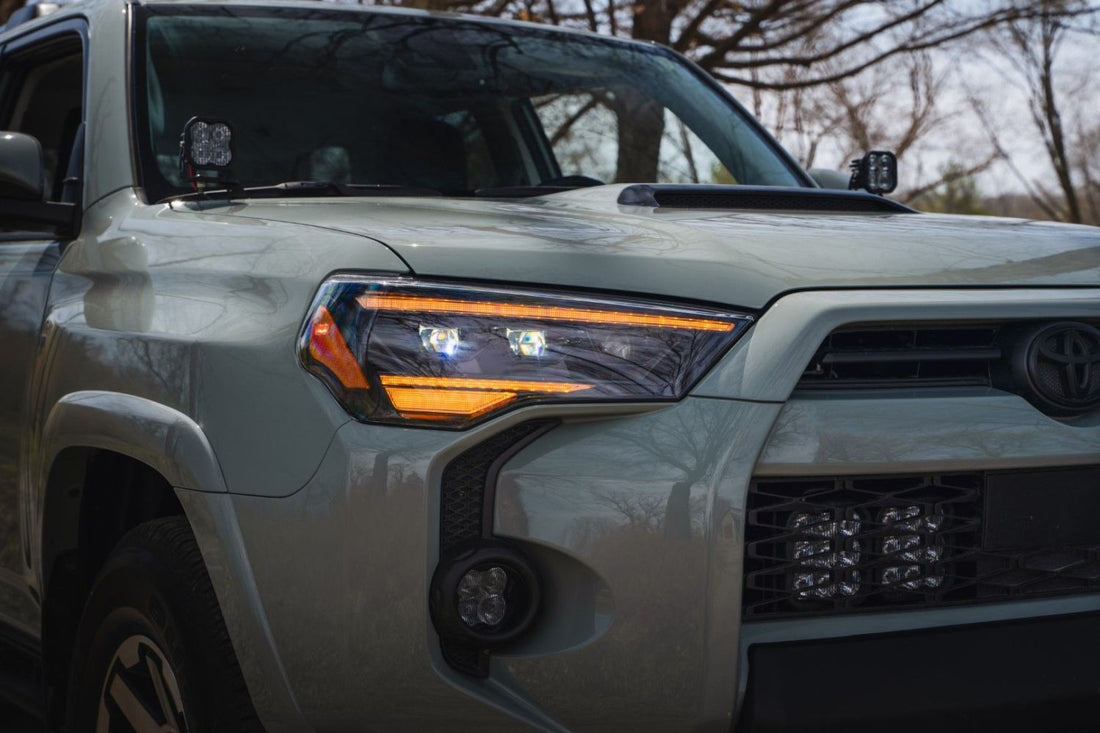

Install Guide: Form Lighting LED Headlights on the 2014-2024 Toyota 4Runner

Install Guide: Form Lighting LED Headlights on the 2014-2024 Toyota 4Runner

Upgrading your 2014-2024 Toyota 4Runner with Form Lighting LED Headlights is one of the best modifications you can make for improved visibility and a sleek, modern aesthetic. These premium headlights offer superior brightness and style, making night drives safer and more enjoyable. This detailed installation guide will walk you through the process step-by-step, ensuring a smooth and hassle-free experience.

Note: For your convenience, you can purchase these headlights from OffRoadUSA, where you'll find great deals and discounts.

Tools You Will Need

  • Flathead screwdriver

  • Phillips screwdriver

  • Ratchet and socket set (10mm and 12mm sockets recommended)

  • Trim removal tool

  • Torque wrench

  • Microfiber cloth

  • Electrical tape (optional)

Pre-Installation Checklist

  1. Park Your Vehicle Safely: Ensure your 4Runner is parked on a flat surface. Turn off the engine, engage the parking brake, and disconnect the battery to avoid any electrical mishaps.

  2. Inspect Your New Headlights: Before starting the installation, unbox the Form Lighting LED Headlights and confirm all components are included and undamaged.

Step 1: Remove the Front Grille

  1. Open the hood of your 4Runner.

  2. Using a flathead screwdriver or trim removal tool, gently pop out the plastic clips securing the top portion of the grille.

  3. Remove any screws or bolts securing the grille to the vehicle using a 10mm socket.

  4. Carefully pull the grille forward to disengage it from the mounting tabs, and set it aside in a safe place.


Step 2: Remove the Stock Headlights

  1. Locate and remove the screws securing the headlight assembly. Typically, these include bolts on the top, side, and bottom of the headlight housing.

  2. Gently pull the headlight assembly forward to expose the wiring harness at the back.

  3. Disconnect the wiring harness by pressing the release tabs and pulling the connectors apart. Be careful not to tug on the wires.

  4. Remove the stock headlight assembly and set it aside.



Step 3: Install the Form Lighting LED Headlights

  1. Align the Form Lighting LED Headlight assembly with the mounting points on your 4Runner.

  2. Reconnect the wiring harness by plugging the connectors into the appropriate ports on the back of the new headlights. Ensure the connections are secure and that no wires are pinched.

  3. Slide the new headlight assembly into place, aligning it with the original mounting points.

  4. Secure the headlight assembly using the screws and bolts you removed earlier. Tighten them with a torque wrench to the manufacturer's specifications.

Step 4: Test the Headlights

  1. Reconnect the battery and turn on the headlights to test their functionality.

  2. Cycle through the different modes (low beam, high beam, and DRL) to ensure all features are working properly.

  3. Adjust the headlight aim if necessary. Refer to your vehicle’s owner’s manual for instructions on how to adjust the aim.

Step 5: Reinstall the Front Grille

  1. Align the grille with the mounting tabs on the front of your 4Runner.

  2. Press the grille into place, ensuring all tabs are securely engaged.

  3. Reinstall the screws and plastic clips you removed earlier to secure the grille.

Post-Installation Tips

  • Clean the Headlights: Use a microfiber cloth to wipe down the headlights and remove any fingerprints or smudges.

  • Check Headlight Alignment: Properly aligned headlights are crucial for optimal visibility and safety. Adjust as needed.

  • Secure Wires: Use electrical tape to secure any loose wires and prevent them from shifting during drives.

Why Choose Form Lighting LED Headlights?

Form Lighting LED Headlights offer exceptional brightness, durability, and style. They’re designed specifically for the 2014-2024 Toyota 4Runner, ensuring a perfect fit and easy installation. Plus, with their long lifespan, you’ll enjoy reliable performance for years to come.

Ready to upgrade? Purchase your Form Lighting LED Headlights today from OffRoadUSA and take advantage of exclusive deals!

By following this guide, you’ll transform your 4Runner’s look and functionality in no time. Happy driving!
